Single & Double Doors

Rickards offer a wide range of aluminium doors for domestic and commercial applications. Built in our factory in Kent, our doors are robust, durable and economical for the ultimate in home security and heating.

Many different types of door are available including:

  • Exterior Aluminium Doors
  • Internal Doors
  • Casement & French Doors

All doors are built to order. Survey, installation and all service work is carried out by our professional team for the highest possible level in quality and customer service.

View the Gallery

ALITHERM HERITAGE

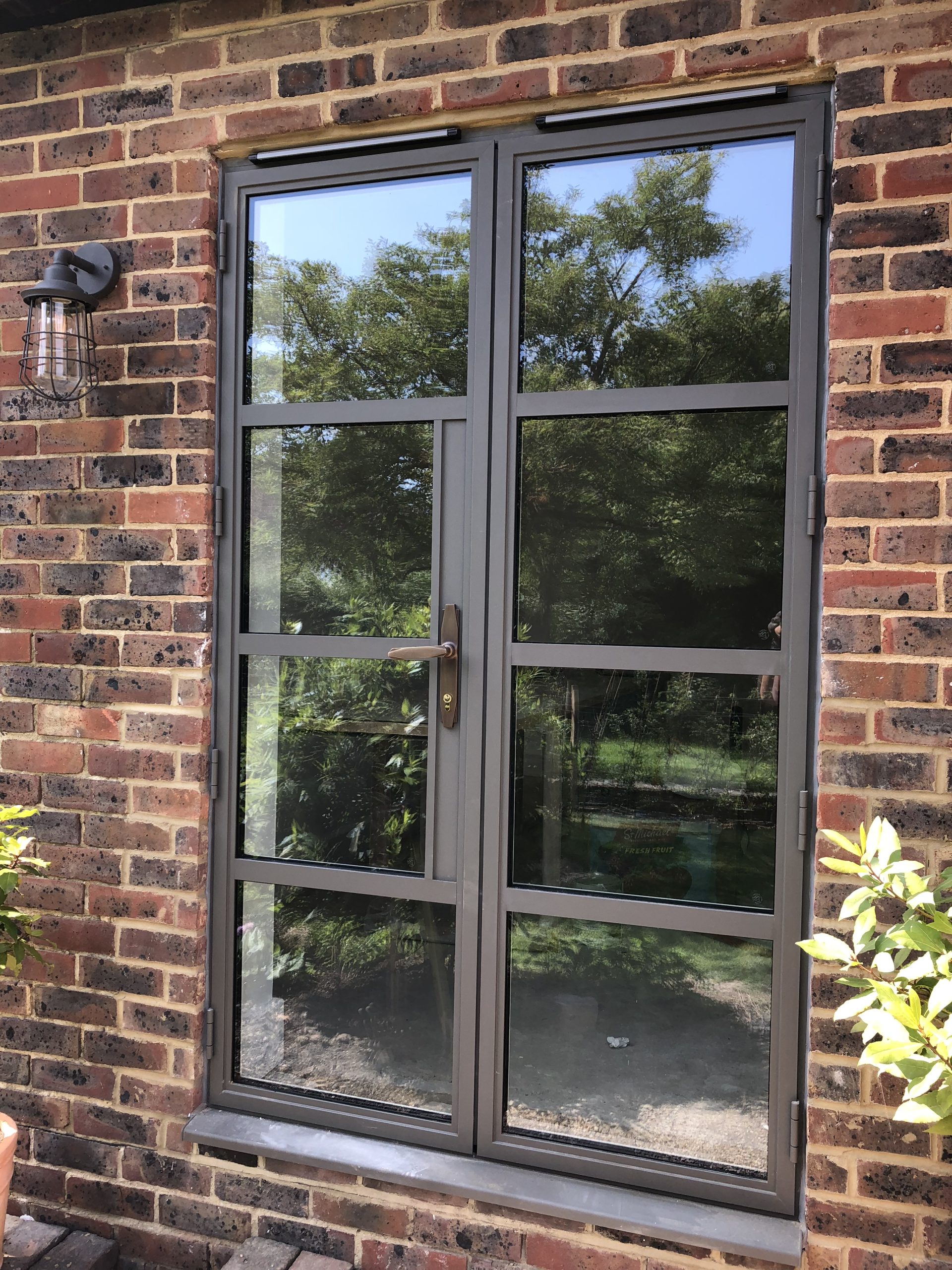

This system is designed to offer a modern aluminium replacement to steel windows and doors. Alitherm heritage features slim sightlines to give you more glass and is ideal for heritage applications such as listed buildings and large scale replica refurbishments where planning restraints are to be considered.

Alitherm heritage profiles utilise Smart’s innovative polyamide thermal break which creates a barrier between the cold air outside and the warm air inside which reduces thermal transmittance and increases the overall U Value

  • MATERIALS

    • Aluminium: 6063 T6 alloy constructed of aluminium alloy extrusion to BS EN 755-9 and BS EN 12020.
    • Sealings: E.P.D.M. according to DIN 7863, TV 110, NFP 85301, ISO 3994. Tested and approved according to an artificial ageing test of “Plexi glass” combined with vulcanised rubber.
    • Co-extruded profiles: according to DIN 7863, TV 110, BFP 85301, ISO 3994, tested and approved according to an artificial ageing test of “Plexi glass” combined with vulcanised rubber.
    • Thermal break: polyamide strips PA 6.6.25% reinforced with glass fibre.
    • Radiation barrier: polyamide strips PA 6.6.25% reinforced with glass fibre.

  • FINISHING

    • Electrostatic Powder coating: according to the guidelines of A..P.A.-Qualicoat in most of the current RAL-colours.
    • The composed profiles (with thermal break) can be coated with different inner and outer colours (dual colour) including metallic, Smart’s Sensations textured and Alchemy anodised effect finishes.
    • Glass shall conform to the requirements of BS 6262 and part N of the Building Regulations for Thickness and Type.
    • Profiles and gaskets will accommodate double units of thickness 28mm,32mm & 36mm double or triple glazed units.

  • CONSTRUCTION

    • Frame members are mitre cut at 45 degrees and faces coated with a suitable gap sealer using internal extruded aluminium corner cleats together with a gluing compound.
    • Members are abutted and securely jointed by mechanical or crimped means.
    • Transoms and mullions are end milled to shape and mechanically secured to frame members by means of self tapping screws driven in screw receptacles in the profile or by means of internal cleats.
    • All mechanical joints shall be sealed against entry of water.
    • All fixings used in construction shall be either stainless steel, aluminium alloy or other suitable corrosion resistant materials.

  • HARDWARE

    • All opening vents are hung on concealed stainless steel variable angled friction stays and fitted with espagnolette type locking handles.
    • To limit the opening restrictor stays can be fitted.
    • Heritage and Art Deco hardware options.

  • GLAZING

    • Aluminium clip in beads and flexible gaskets inside and out meeting the requirements of BS 6262, Code of Practice for Glazing for Buildings.
    • Double or triple glazed units can be used in this system with either colour tinted glass, solar controlled or acoustic glass.

Need a quote?

We would be glad to help you!

Call
Email

ALITHERM PLUS

Alitherm Plus is a thermally broken door system suitable for replacement doors in existing buildings and for installation into new buildings.

This system is hung on either face fitted adjustable flag hinges or adjustable butt hinges and are locked by a multi-point lock which engages into a one peace keep for single doors or individual keeps for double doors and operated by lever/lever handles. There is a wide range of different options like fully glazed, half glazed or colour coded aluminium panels to get that look you are trying to achieve.

  • MATERIALS

    • Aluminium alloy extrusion to BS EN 755-9 and BS EN 12020, extruded from 6063 T6 alloy.
    • Sealings: E.P.D.M. according to DIN 7863, TV 110, NFP 85301, ISO 3994. Tested and approved according to an artificial ageing test of “Plexi glass” combined with vulcanised rubber.
    • Co-extruded profiles: according to DIN 7863, TV 110, BFP 85301, ISO 3994, tested and approved according to an artificial ageing test of “Plexi glass” combined with vulcanised rubber.
    • Thermal break: polyamide strips PA 6.6.25% reinforced with glass fibre.
    • Radiation barrier: polyamide strips PA 6.6.25% reinforced with glass fibre

  • FINISHING

    • Electrostatic Powder coating: according to the guidelines of A..P.A.-Qualicoat in most of the current RAL-colours.
    • The composed profiles (with thermal break) can be coated with different inner and outer colours (dual colour) including metallic, Smart’s Sensations textured and Alchemy anodised effect finishes.
    • Glass shall conform to the requirements of BS 6262 and part N of the Building Regulations for Thickness and Type.
    • Profiles and gaskets will accommodate double units of thickness 28mm,32mm & 36mm double or triple glazed units.

  • CONSTRUCTION

    • Frame members are mitre cut at 45 degrees and faces coated with a suitable gap sealer using internal extruded aluminium corner cleats together with a gluing compound.
    • Members are abutted and securely jointed by mechanical or crimped means.
    • Transoms and mullions are end milled to shape and mechanically secured to frame members by means of self tapping screws driven in screw receptacles in the profile or by means of internal cleats.
    • All mechanical joints shall be sealed against entry of water.
    • All fixings used in construction shall be either stainless steel, aluminium alloy or other suitable corrosion resistant materials.

  • HARDWARE

    • All doors are hung on face fitted flag hinges or butt hinges.
    • Multi point locking system.
    • Choice of different colours and finishing’s.

  • GLAZING

    • Aluminium clip in beads and flexible gaskets inside and out meeting the requirements of BS 6262, Code of Practice for Glazing for Buildings.
    • Double or triple glazed units can be used in this system with either colour tinted glass, solar controlled or acoustic glass.
